Ory Ecosystem

Prerequisites#

Ory Kratos#

Quickstart#

git clone -b v0.6.3-alpha.1 --depth 1 https://github.com/ory/kratos.gitcd kratos
docker-compose -f quickstart.yml -f quickstart-standalone.yml up --build --force-recreate# If you have SELinux, run:docker-compose -f quickstart.yml -f quickstart-selinux.yml -f quickstart-standalone.yml up --build --force-recreate

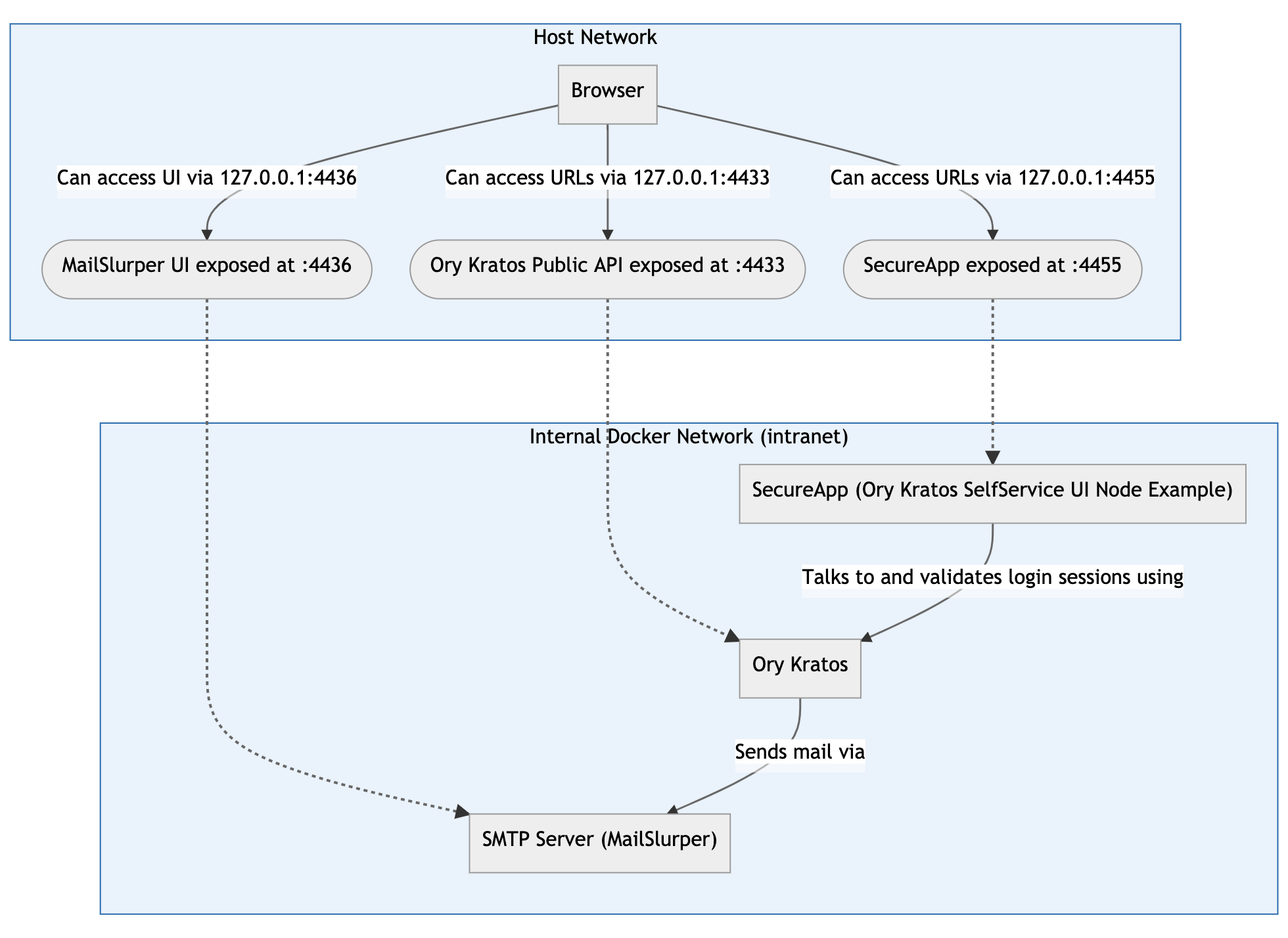

  • Ory Kratos
    • Public ("Browser") API (port 4433)
    • Admin API (port 4434) - This is only made public so we can test via the CLI.
  • SecureApp
    • Public (port 4455) - an example application written in NodeJS that implements the login, registration, logout, dashboard, and other UIs.
  • MailSlurper
    • Public (port 4436) - a development SMTP server which Ory Kratos will use to send emails.

Open http://127.0.0.1:4455/dashboard to experience. After Register new account / Reset password, go to http://127.0.0.1:4436 (fake SMTP server) to retrieve your emails.

Clean up:

docker-compose -f quickstart.yml down -vdocker-compose -f quickstart.yml rm -fsv

Installation#

docker pull oryd/kratos:v0.6.3-alpha.1docker run --rm -it oryd/kratos:v0.6.3-alpha.1 help

Ory Hydra#

5 Minute Tutorial#

git clone -b v1.10.2 --depth 1 https://github.com/ory/hydra.gitcd hydra
# start the needed containersdocker-compose -f quickstart.yml \  -f quickstart-postgres.yml \  up --build

OAuth 2.0 Client:

# create the OAuth 2.0 Client$ docker-compose -f quickstart.yml exec hydra \    hydra clients create \    --endpoint http://127.0.0.1:4445/ \    --id my-client \    --secret secret \    -g client_credentials
You should not provide secrets using command line flags, the secret might leak to bash history and similar systemsOAuth 2.0 Client ID: my-client
# perform the client credentials grant$ docker-compose -f quickstart.yml exec hydra \    hydra token client \    --endpoint http://127.0.0.1:4444/ \    --client-id my-client \    --client-secret secret
58O7jfLge4ZiTTUhxgYO6UIts_p1kiIS-GJ2t0y1NcI.oCpSn6o3Uv92DmS_PpJPcFmdMskrIShJwa5t50FWQ5Y
# perform token introspection on that token$ docker-compose -f quickstart.yml exec hydra \    hydra token introspect \    --endpoint http://127.0.0.1:4445/ \    58O7jfLge4ZiTTUhxgYO6UIts_p1kiIS-GJ2t0y1NcI.oCpSn6o3Uv92DmS_PpJPcFmdMskrIShJwa5t50FWQ5Y
{        "active": true,        "aud": [],        "client_id": "my-client",        "exp": 1624940427,        "iat": 1624936827,        "iss": "http://127.0.0.1:4444/",        "nbf": 1624936827,        "sub": "my-client",        "token_type": "Bearer",        "token_use": "access_token"}

OAuth 2.0 Authorization Code Grant:

# create a client that is capable of performing that grant$ docker-compose -f quickstart.yml exec hydra \    hydra clients create \    --endpoint http://127.0.0.1:4445 \    --id auth-code-client \    --secret secret \    --grant-types authorization_code,refresh_token \    --response-types code,id_token \    --scope openid,offline \    --callbacks http://127.0.0.1:5555/callback
You should not provide secrets using command line flags, the secret might leak to bash history and similar systemsOAuth 2.0 Client ID: auth-code-client
# start a server that serves an example web application: http://127.0.0.1:5555$ docker-compose -f quickstart.yml exec hydra \    hydra token user \    --client-id auth-code-client \    --client-secret secret \    --endpoint http://127.0.0.1:4444/ \    --port 5555 \    --scope openid,offline
Setting up home route on http://127.0.0.1:5555/Setting up callback listener on http://127.0.0.1:5555/callbackPress ctrl + c on Linux / Windows or cmd + c on OSX to end the process.If your browser does not open automatically, navigate to:
        http://127.0.0.1:5555/

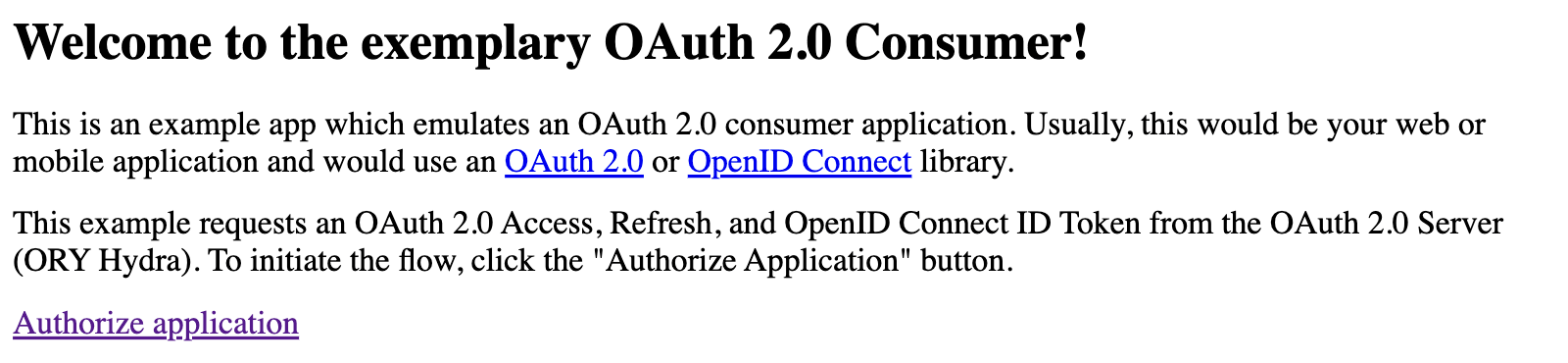

open the URL http://127.0.0.1:5555,

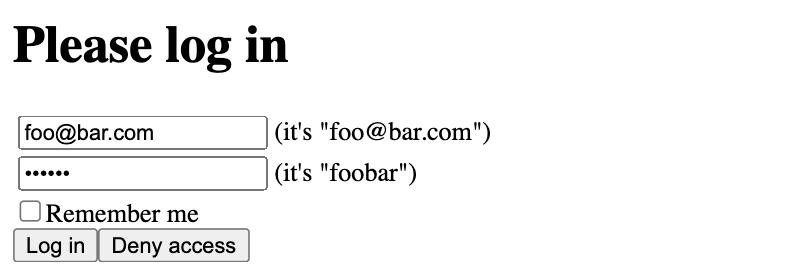

log in,

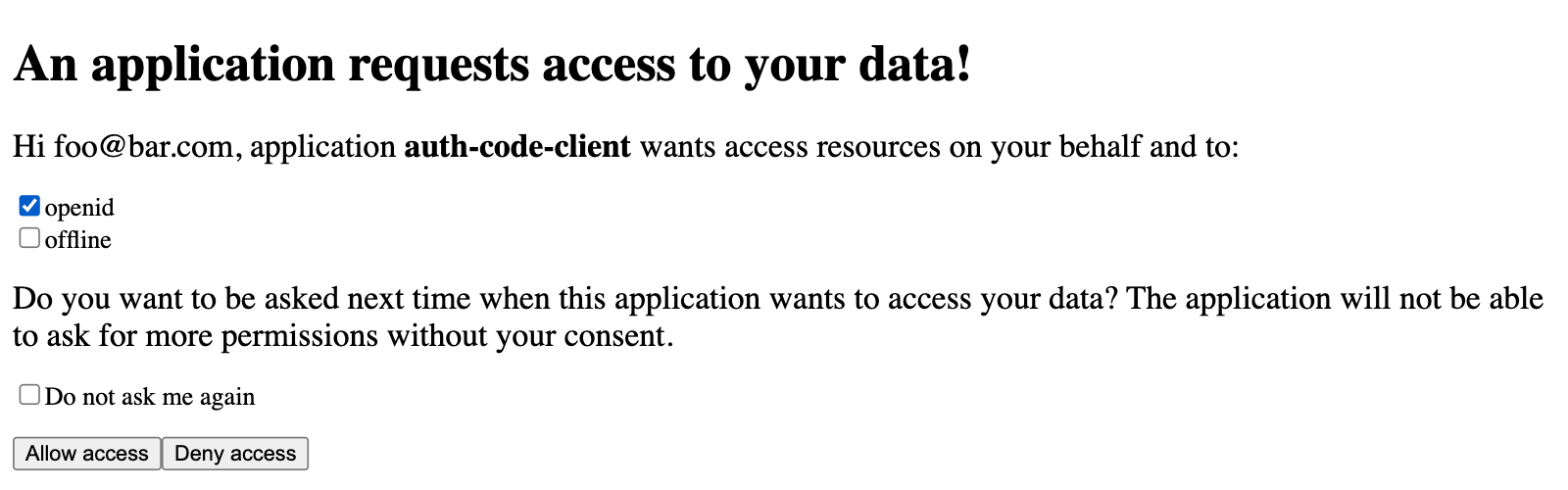

authorize the application,

see access token in the response,

Access Token:        Bae-8uDIBbw_6dyQ9ikNPwqX9xmRyNkac3duaNS6LGM.zkPsj5oJ9Rw68qbB5zXxK4YugrkUWIXxar-GlXSpzW0Refresh Token:
Expires in:        Tue, 29 Jun 2021 04:25:10 UTCID Token:        eyJhbGciOiJSUzI1NiIsImtpZCI6InB1YmxpYzo2NzI0YTBiYy04NzI4LTRlYzgtYmUwOC03OWE4NjA4NDNmY2UiLCJ0eXAiOiJKV1QifQ.eyJhY3IiOiIwIiwiYXRfaGFzaCI6IldaNlQ3UUo0SGlNaWZTc0pOS1VZM0EiLCJhdWQiOlsiYXV0aC1jb2RlLWNsaWVudCJdLCJhdXRoX3RpbWUiOjE2MjQ5MzcwNDMsImV4cCI6MTYyNDk0MDcxMSwiaWF0IjoxNjI0OTM3MTExLCJpc3MiOiJodHRwOi8vMTI3LjAuMC4xOjQ0NDQvIiwianRpIjoiOGE1MGRlM2YtMjMwNi00ZjIwLWExOGYtODE2MjlkOThmODQyIiwibm9uY2UiOiJsY2x1dndxc2FuaGlrZGd2anFrcHh4c2UiLCJyYXQiOjE2MjQ5MzcwMTYsInNpZCI6ImFhZDg3NmI2LTZlZTAtNGFmNC1hYzNkLWY2MzhhZTJhNDdjMSIsInN1YiI6ImZvb0BiYXIuY29tIn0.DlZ-52RtLwO2i5r5siOUaF8m9oiPcC4aWEYioleTmmeksV04FZmFV7ChNHAb34O_Te8SacJA0STR-JTRj9kX1wfj3GAtF0QLBN7RcEGWer9oiEgV3FQSe-Tztl2RMIRGSNP5si4lVN1vknJbY7ehUgFsh5E3zrm1RG7D9DHO1MT7Z1Q_BbBJ3RhPirlW7hYWmrvtz1mwJJ2-EJQz73eqjtP7WbjxGI0c7eRftuZ0JVWhONra_tRQQCRmWD1tOaL8J2Ee1_iR2hbv0AKGSW8gm3mS_0Q1W5z0OWnJxTO0kQVcUK_zuA-JQgR8Fy95UP0Nw4_SnG0Bdrt2Xl57-jkOW5ac9D4T3v6VraPvm6x7mA-SOHIniJF8KAnq_3hWM4rLN9hJjGImNNJ7_Efm0OVLCDV9Fx42DpLx6gjRdhO1pPvXEWuUI8OI94jKJMTWZhdQWxjBmlBk-4SJjOOPXn6z-qGGRw3FczOWbgUjqCdXAGjaw-hA1xpEhhC8bGuFO1Tc5Dk2SIvEQKrSWZS1MMb06-1oHucdS7MTmCUhx0ukFp04KndZ3QnIVItLOOowRkqdZZj8WXtotM1p_1EHUpVnSlV-uOe2KH5Nuw6s5kJ5lfoD8LrHWAJFu4hZRaq8tQ3J_2hc6CKdl7RukIFHwuDYpPIWpTiW-qoIA6TjLjUqFos
http: Server closed

Clean up:

docker-compose -f quickstart.yml killdocker-compose -f quickstart.yml rm -f -v

Installation#

docker pull oryd/hydra:v1.10.2docker run --rm -it oryd/hydra:v1.10.2 help

Ory Oathkeeper#

Installation#

docker pull oryd/oathkeeper:v0.38.12-beta.1docker run --rm -it oryd/oathkeeper:v0.38.12-beta.1 help

Ory Keto#

Quickstart#

git clone -b v0.6.0-alpha.3 --depth 1 https://github.com/ory/keto.gitcd keto
$ docker-compose -f contrib/cat-videos-example/docker-compose.yml up
keto-init_1  | NAMESPACE        OBJECT          RELATION NAME   SUBJECTketo-init_1  | videos           /cats/1.mp4     owner           videos:/cats#ownerketo-init_1  | videos           /cats/1.mp4     view            videos:/cats/1.mp4#ownerketo-init_1  | videos           /cats/1.mp4     view            *keto-init_1  | videos           /cats/2.mp4     owner           videos:/cats#ownerketo-init_1  | videos           /cats/2.mp4     view            videos:/cats/2.mp4#ownerketo-init_1  | videos           /cats           owner           cat ladyketo-init_1  | videos           /cats           view            videos:/cats#owner

Simulating the Video Sharing Application:

alias keto="docker run -it --network cat-videos-example_default -e KETO_READ_REMOTE=\"keto:4466\" oryd/keto:v0.6.0-alpha.3"

Check Incoming Requests:

# Is "*" allowed to "view" the object "videos":"/cats/2.mp4"?$ keto check "*" view videos /cats/2.mp4
Denied
# Who is allowed to "view" the object "videos":"/cats/2.mp4"?$ keto expand view videos /cats/1.mp4
∪ videos:/cats/1.mp4#view├─ ☘ *️├─ ∪ videos:/cats/1.mp4#owner│  ├─ ∪ videos:/cats#owner│  │  ├─ ☘ cat lady️
# Is "*" allowed to "view" the object "videos":"/cats/1.mp4"?$ keto check "*" view videos /cats/1.mp4
Allowed

Installation#

docker pull oryd/keto:v0.6.0-alpha.3docker run --rm -it oryd/keto:v0.6.0-alpha.3 help
